Technical Info Super Slim In Masonry Cistern (52H)

Technical Info Super Slim In Masonry Cistern (52H)

Click to the technical & installation information on the Super Slim toilet cistern designed for installing into masonry walls.

View Full Description
View Product Features
View PDF Downloads
PRODUCT IDENTIFICATION
Super slim cistern kit (52H) frame for installation of wall hung wc with dual flush mechanical actuated cistern with net and anti-condensation cover. An air conversion kit is supplied for pneumatic flush plates.

APPLICATIONS
- Installation in masonry walls with reduced depth.
- Front wall installation.
- Suitable for renovating projects.
TECHNICAL STRUCTURE FEATURES
- Galvanized metal frame corrosion resistant.

CISTERN
- Dual flush cistern.
- Polypropylene (PP) cistern highly resistant and inalterable to thermal stress.
- Reduced thickness of 80 mm
- Easy installation.
- Easy access for maintenance.
- Easy flush volume adjustment (Fast Adjustment System)
- Anti-condensation EPS – Polystyrene cover plate (total thickness of 80 mm)
- Special fiber net for cement grip.
- Waste pipe with Polystyrene (EPS) cover to provide incidental mistakes during installation and to reduce noise during flush.
- Silent AZOR float valve certificated according to the NF standard category Class I
- Certified cistern according KIWA/SABS/SAI/WRAS standards.
- CE EN 14055 marking CL1
- “A” class for the Energy Efficiency in compliance with the ANQIP Authority requirements.

WORKING CHARACTERISTICS
- 2 flushes volumes 3 litre (half flush) and 6 litre (full flush)
- Working pressure from 0,2 to 20 bar.
- Resistance to atmospheric humidity (Hr <90%).

ACCESSORIES EQUIPMENT
- 1 PHED discharge pipe bend ø 90
- 1 PP protection box
- 1 Protection plug Ø90
- 1 Protection plug Ø45
- 1 PP connecting sleeve Ø45
- 1 PP connecting sleeve Ø90
- 1 Stop-valve with positioning ring.
- 1 Protection sponge for the stop valve.

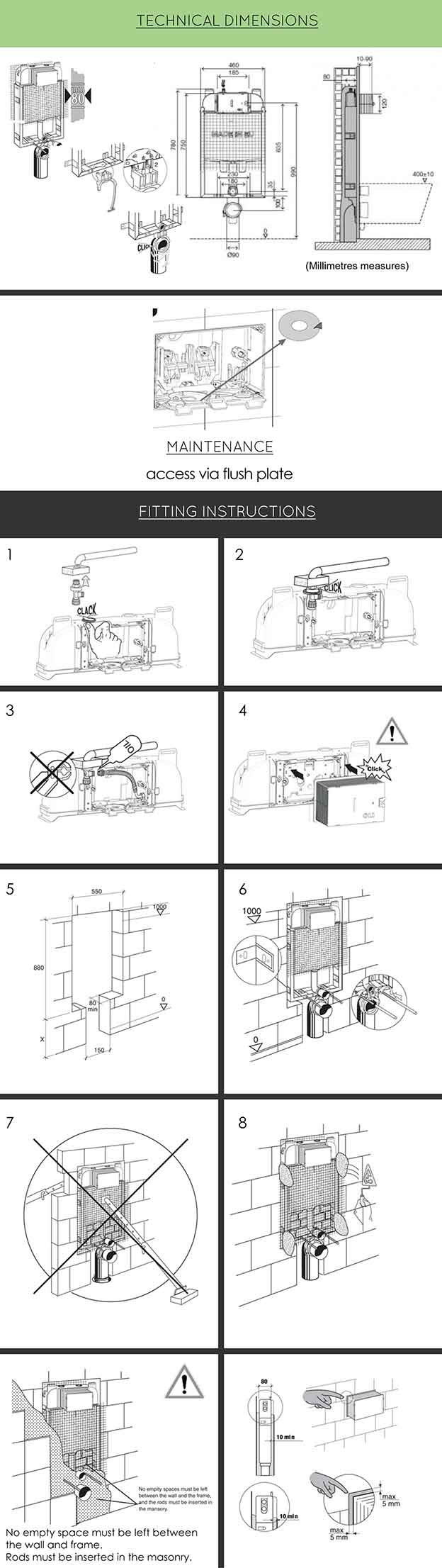

- Installation instructions.
Fixing accessories for wall structure:
- 4 Galvanize screws M8x60
- 4 Galvanized washers M8 DIN 9021
- 4 Fischer dowel screws.

Fixing accessories for toilet bowl mounting on the structure:
- 2 Threaded rods M12
- 2 Nuts M12
- 2 Protection for threaded rod.
- 2 Protection cover.
- 2 Toilet centering washer.
- 2 Washers Zn ø 34

STATIC RESISTANCE
400 kg static weight load supported provided that the installation must be workmanlike performed.

MAINTENANCE
It is possible to access the inside of the cistern quickly and easily, without the need of special equipment, using the spare parts fixed to the anti condensation plaque is possible to replace the deteriorated components.

WARRANTY
Cistern:
Ten years warranty (10 years) according to the general selling terms, warranty starts from the purchasing date of the products. If the
product is not correctly installed the warranty is not valid.

Push Plate:
Two years warranty (2 years) according to the general selling terms, warranty starts from the purchasing date of the products. If the
product is not correctly installed the warranty is not valid.

INFO
For further information please Telephone 01722 415000
