Installation of the Power Wire.
Caution:
The power supply should be 220-240V or 380-415V, 50/60Hz, please refer to the nameplate of the generator or table 1 of this manual.
The selection of fuse and breaker must strictly follow the data in table 1.
Choose the suitable power wire according to table 1 and local codes.

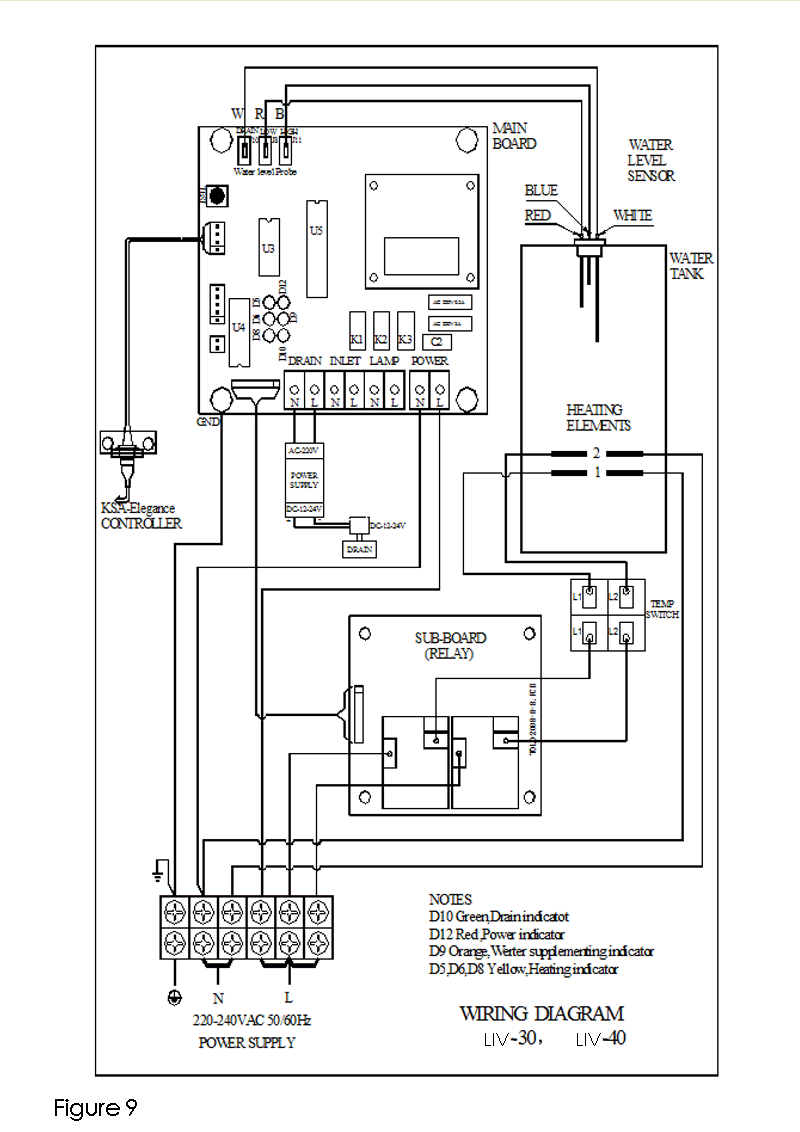

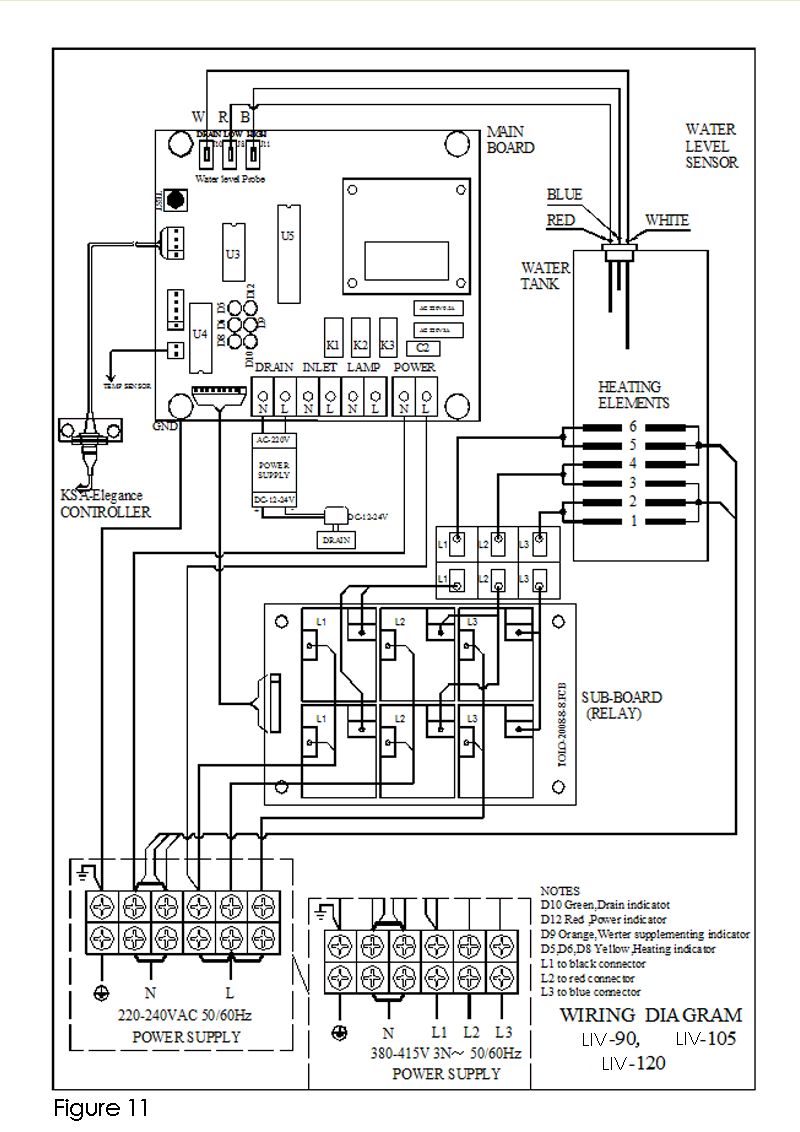

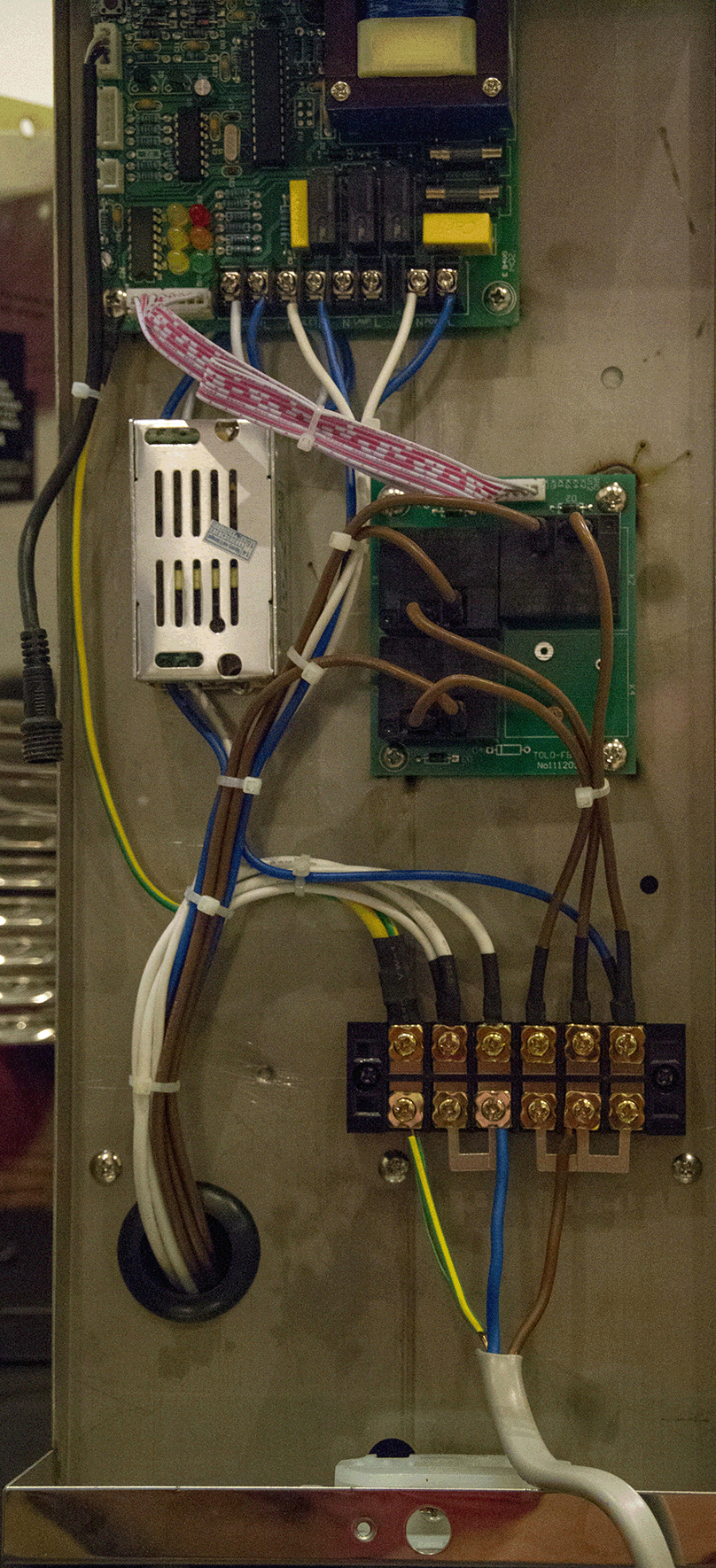

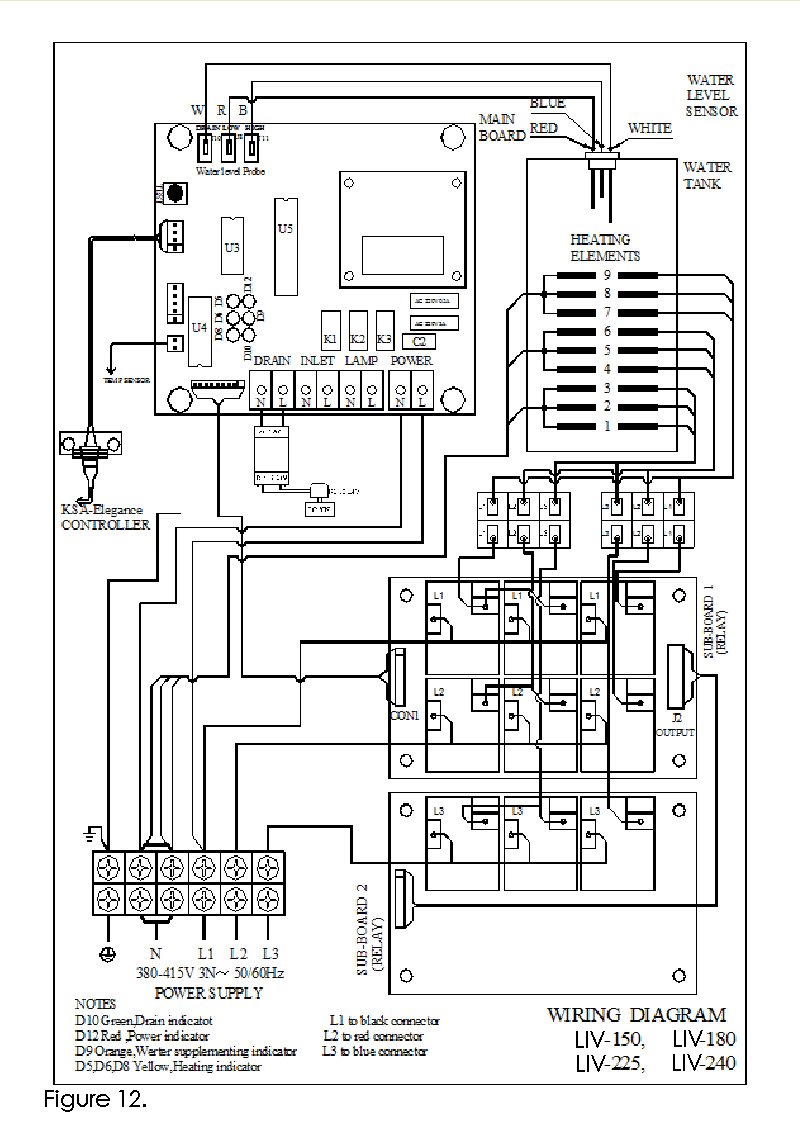

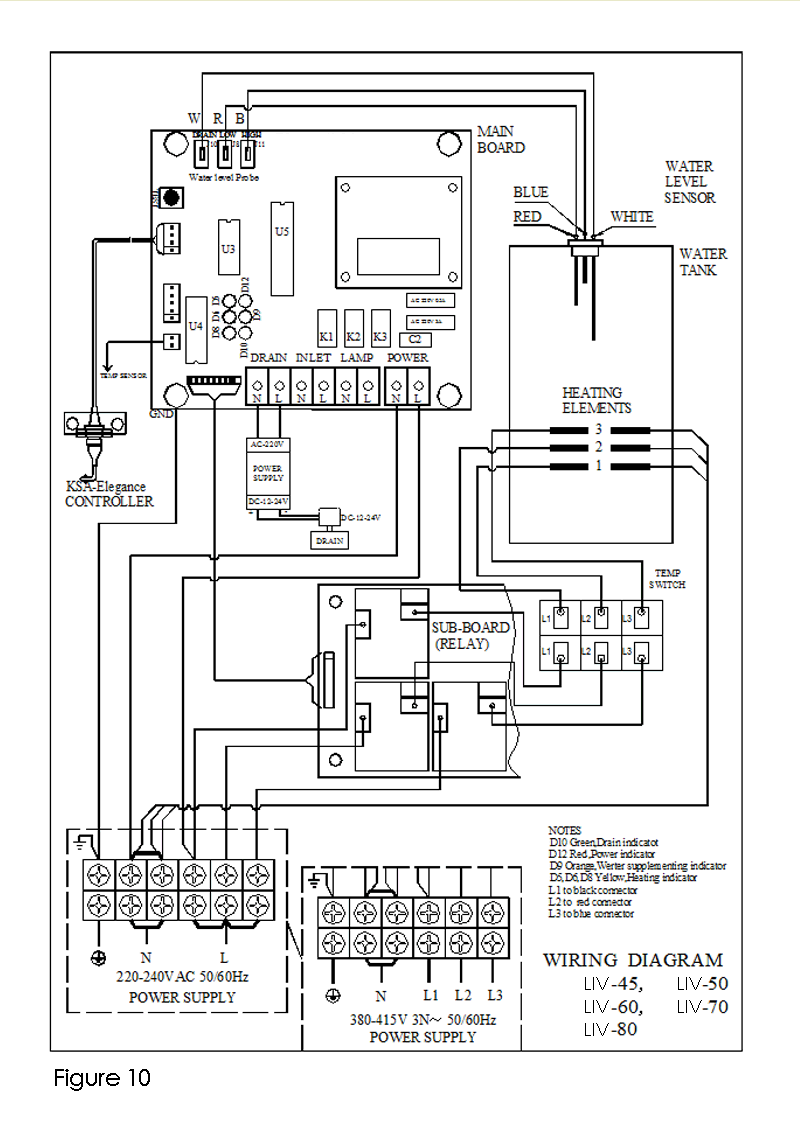

Take off the back cover of the generator, insert the 3-core power wire (single phase, 220-240V，50/60Hz) or 5-core power wire (three phases 380-415V 50/60Hz) into the hole at the back of the generator case and connect to the correct terminal. (Refer to figure9-12).

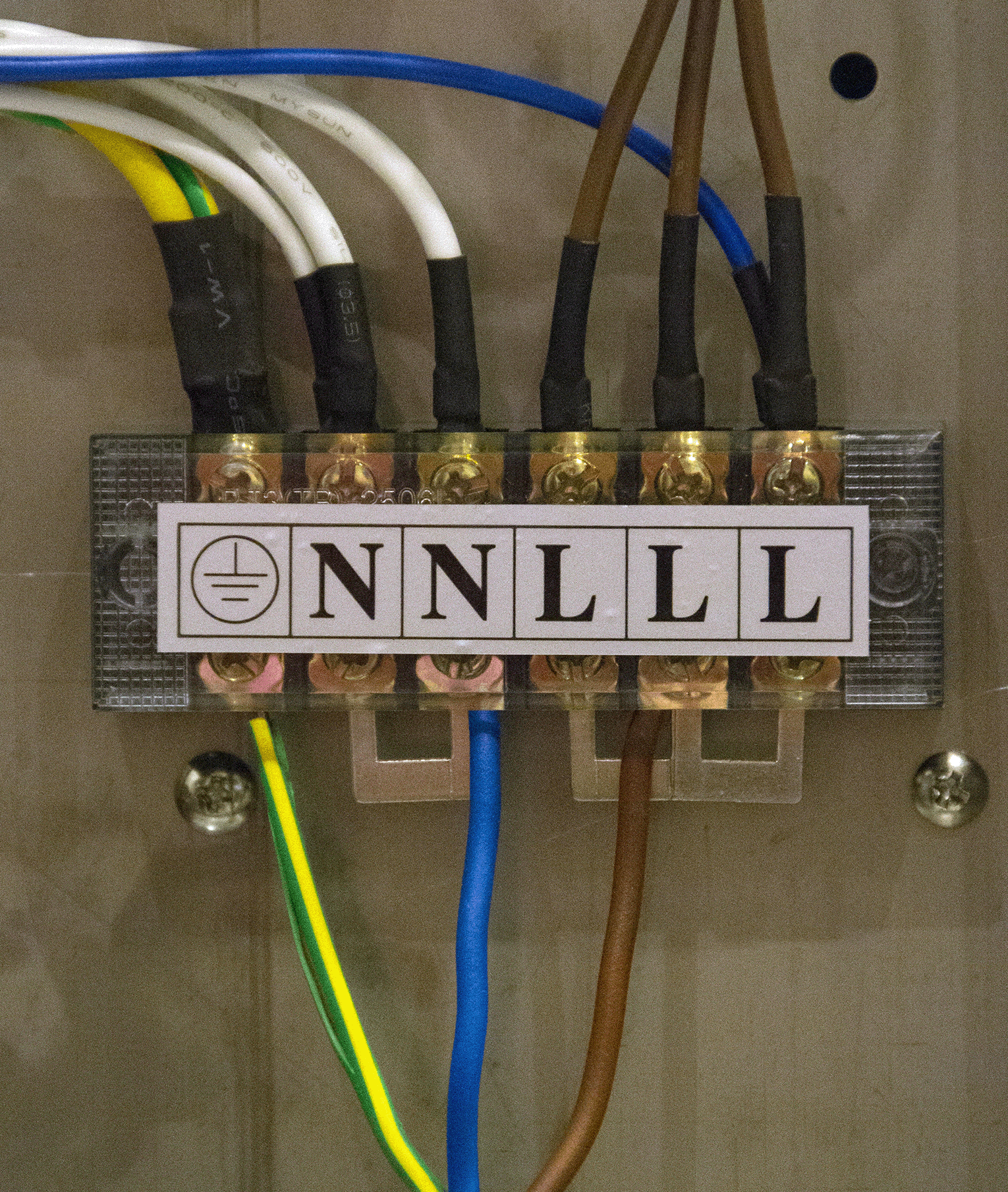

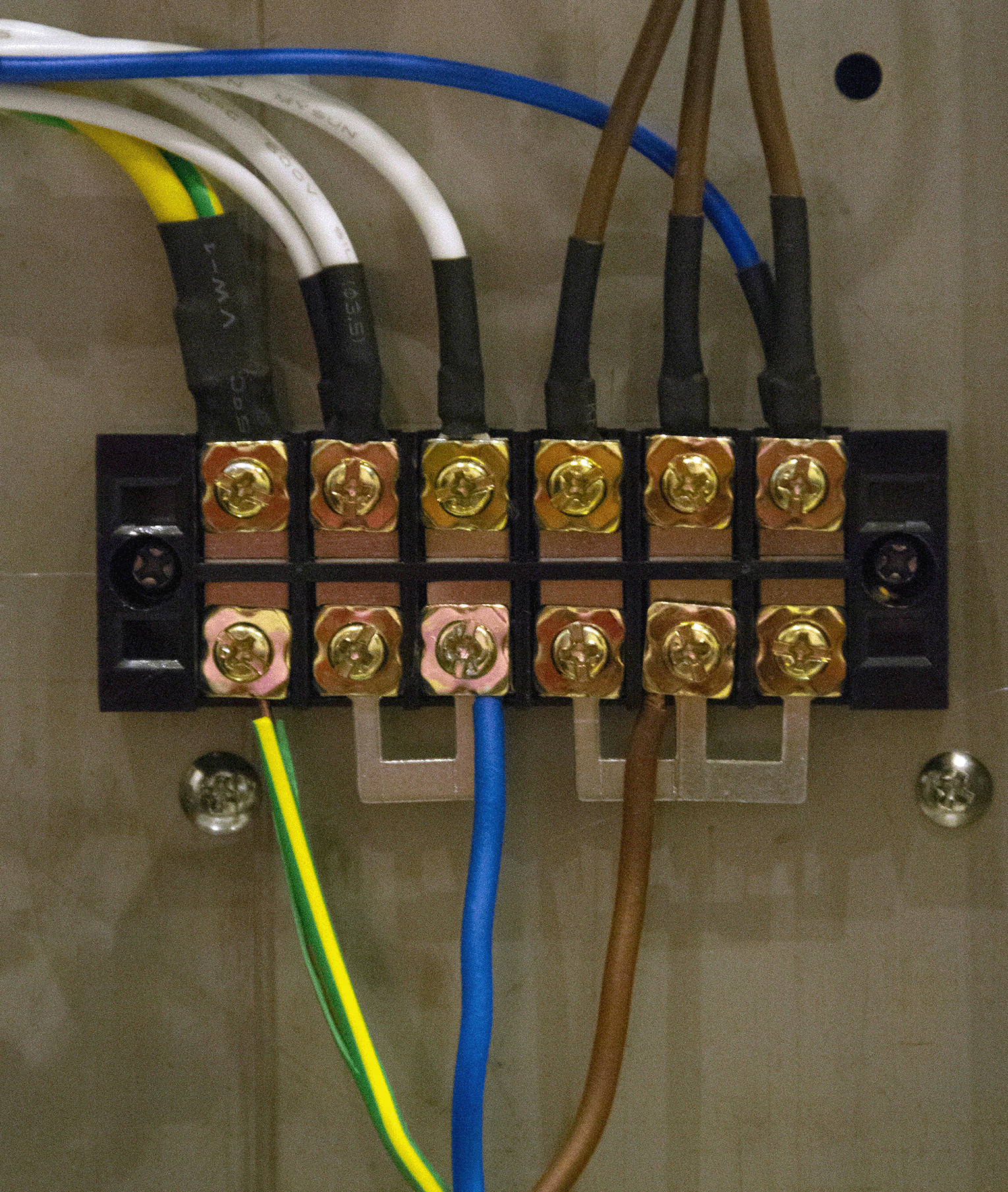

Single phase, 220-240V，50/60Hz power supply: connect the live wire to the terminal labeled as “L” ; connect the neutral wire to the terminal labeled as “N” ; and connect the ground wire to the terminal labeled as “ ”.
Three phases, 380-415V，50/60Hz power supply : connect the L1, L2, L3 wire to the terminal labeled as “L1”, “L2” and “L3” respectively; connect the neutral wire to the terminal labeled as “N”; and connect the ground wire to the terminal labeled as “ ”.
